MACHINE PARK

BM Industriteknik possesses an extensive assortment of production equipment. Here on this side, you can see a number of these machines.


STEEL MACHINING:

• 210 ton edging press, max. width 3.000 mm
• Hydraulic plate rolling mill (hardened rolls)
  max. 45 mm, width 3000 mm
• Hydraulic plate shears max. 8 mm, width 3000 mm
• Mubea 1000 (punching machine)
  max. ø40 mm in 22 mm sheet.
• Hydraulic plate rolling mill (hardened rolls)
  max. 8 mm, width 2000 mm
• 1 Plate Bevelling Machine, Versa 12,
  angles: 30 – 37,5 – 45 degrees
• 2 Plate Bevelling Machine, OMCA 760
  adjustable angle 15 – 45 degrees, 0 – 15 mm
• 1 Langeskov mobile belt polishing machine for groove grinding 75 mm on sheets.
• 1 Transfluid MB 642 mobile pipe bending
  machine, ø6 – ø42 mm
• 1 mobile belt polishing machine for bevelling of 2 edges
• 1 Roundo R6 profile, angle bending rolls, large (see picture)
• 1 Pullmax angle bending rolls



WELDING:

• ESAB welding tower:
  Length of welding arm: 7500 mm
  Height 7600 mm
• Max. diameter in roller conveyor ø6000 mm
• Amperage: 1400 Amp.

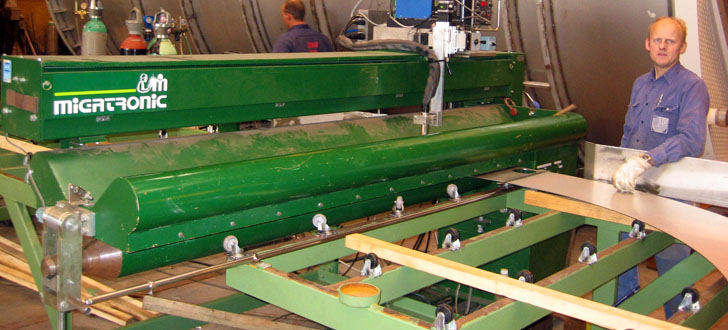

• Migatronic Plasma long seam machine (picture)
• TIG welding unit
• Mig & Mag welding unit
• Electrode welding unit
• Pipe Purge Systems for stainless pipe welding
• 1 A 6 welding tractor with 1000 A power source (powder welding)
• 1 Migatronic plasma cutting PDX 85.
  Max. wall thickness: 20 mm
• 2 Gram mobile low-pressure suction
  smoke extraction with giraf-arm
• 2 Geovent mobile low-pressure suction smoke extraction

WELDING ROTATORS & POSITIONERS:

• 2 BODE TYPE SAR/2000
  Max. weight: 100 ton/work piece
  Max. diameter: 7600 mm
• 1 Max. weight 25 ton pro/work piece
  Max. diameter: ca. 3000 mm
• 2 Model Ree. Max. weight per work piece: 25 ton. Diameter 3000 mm
• 1 Hägglunds. Max. weight per work piece: 5 ton. Diameter 2000 mm

WELDING TURN TABLES:

• 1 DEUMA TYPE DK 5000. Max. weight per work piece: 5000 kg
• 1 PEMA TYPE 750 H. Max. weight per work piece: 750 kg
• 1 PH 150HW125. Max. weight per work piece: 200 kg

SAWING:

• 1 MEBA 320 DG Metal band sawing-machine (picture)
  ø320 mm. L: 500 mm x B: 300 mm
• 2 GF Pipe saw DN80 – DN200

CONTAINERS:

• 4 20 feet work shop containers for mounting/assembly tasks

SCISSOR LIFTS (Aerial access platforms):

• 2 Scissor lifts, 6 m platform height (8 m working height)
• 2 Scissor lifts, 8 m platform height (10 m working height)

INTERNAL TRANSPORT

• 1 Hangscha 3,5 ton truck
• 1 Kalmar 10 ton truck, inclusive bolster wagon
• 12 Bolster wagons 25 ton
• 1 Fiat dumper with crane boom, 6,5 ton
• 4 Flatbed trucks, 20 ton
